EASY-TO-SETUP INVERTER PACKAGES
EASY-TO-SETUP INVERTER & SOLAR POWER KITTING ADVISORY
Don’t let the seemingly intimidating process of buying and installing an inverter system or solar power system in your house deter you from saving money in the long term and assisting you during load-shedding. Radian Online Zambia has taken all the complications out of purchasing a fully functional solar power system for your home or office by creating the below easy-to-follow-and-setup kitting advisory to suit your needs. If you are unsure which solar power kit is the ideal fit for your home then check out our kitting guides below which should answer any questions you have.
OPTION 1: ENTRY-LEVEL STANDARD Combo Kit
What this package can run for approximately 5 to 6 hours
Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 2 | 18 | 36 |
Energy-Saver 8W LED Bulbs | 5 | 8 | 40 |
Electric Stand Fan | 1 | 50 | 50 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
Fortuner Hybrid Inverter / Home UPS-12V/20A With LED - 350VA | SOL_INV_350VA | 1 |
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 |
Leoch AGM Deep Cycle 12V 100AH Battery | SOL_BAT_100AH | 1 |
What your setup should look like and the components you will need
b.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
T-Bolt 12V 100W Poly Solar Panel (Connect in Parallel for 12V 200W output using MC4-T) | SOL_PANEL_100W | 2 |
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Black | SOLCABLE_ESC-1x6-5M | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Red | SOLCAB_ESC-1x6-5M_R | 1 |
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 |
What your setup should look like and the components you will need
c.) If you are interested in OPTION 1, contact us and inform us that you are interested in OPTION 1 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 1 and the sum amount for this package.
OPTION 2: ENTRY-LEVEL EXTRA Combo Kit
What this package can run for approximately 5 to 6 hours Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 2 | 18 | 36 |
Energy-Saver 8W LED Bulbs | 3 | 8 | 24 |
Electric Stand Fan | 1 | 50 | 50 |
43" Energy-Efficient LED T.V | 1 | 65 | 65 |
T.V Decoder | 1 | 20 | 20 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
Fortuner Hybrid Inverter / Home UPS-12V/20A With LED - 350VA | SOL_INV_350VA | 1 |
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 |
Leoch AGM Deep Cycle 12V 150AH Battery | SOL_BAT_150AH | 1 |
What your setup should look like and the components you will need
b.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
T-Bolt 12V 150W Poly Solar Panel (Connect in Parallel for 12V 300W output using MC4-T) | SOL_PANEL_150W | 2 |
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr – Black | SOLCABLE_ESC-1x6-5M | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr – Red | SOLCAB_ESC-1x6-5M_R | 1 |
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 |
What your setup should look like and the components you will need
c.) If you are interested in OPTION 2, contact us and inform us that you are interested in OPTION 2 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 2 and the sum amount for this package.
OPTION 3: MID-LEVEL STANDARD Combo Kit
What this package can run for approximately 4 to 5 hours
Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 3 | 18 | 54 |
Energy-Saver 8W LED Bulbs | 10 | 8 | 80 |
Electric Stand Fan | 2 | 50 | 100 |
43" Energy-Efficient LED T.V | 1 | 65 | 65 |
T.V Decoder | 1 | 20 | 20 |
Energy-Efficient Upright Fridge (~180 Net Lts) | 1 | 135 | 135 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY | ||
Fortuner Hybrid Inverter / Home UPS-12V/40A With LCD - 900VA | SOL_INV_900VA | 1 | ||
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 | ||
Leoch AGM Deep Cycle 12V 150AH Battery (Connect in Parallel for 12V 300AH output) | SOL_BAT_150AH | 2 | ||
T-bolt 10mm Solar Jumper Cable + Lug – Black | SOL_CON_LUG_10-8 | 1 | ||
T-bolt 10mm Solar Jumper Cable + Lug – Red | SOL_CON_LUG_10-8 | 1 | ||
What your setup should look like and the components you will need
b.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY | ||
T-Bolt 12V 150W Poly Solar Panel (Connect in Parallel for 12V 600W output using MC4-T) | SOLARPANEL-150W | 4 | ||
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 3 | ||
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Black | SOLCABLE_ESC-1x6-5M | 1 | ||
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Red | SOLCAB_ESC-1x6-5M_R | 1 | ||
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 | ||
What your setup should look like and the components you will need
c.) If you are interested in OPTION 3, contact us and inform us that you are interested in OPTION 3 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 3 and the sum amount for this package.
OPTION 4: UPPER-LEVEL STANDARD Combo Kit
What this package can run for approximately 4 to 5 hours
Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 3 | 18 | 54 |
Energy-Saver 8W LED Bulbs | 10 | 8 | 80 |
Electric Stand Fan | 2 | 50 | 100 |
43" Energy-Efficient LED T.V | 1 | 70 | 70 |
T.V Decoder | 1 | 20 | 20 |
Energy-Efficient Upright Fridge (~180 Net Lts) | 1 | 135 | 135 |
Energy-Efficient Chest Freezer (~200 Net Lts) | 1 | 155 | 155 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY | ||
Fortuner Hybrid Inverter / Home UPS-12V/40A With LCD -1200VA | SOL_INV_1200VA | 1 | ||
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 | 1 | |
Leoch AGM Deep Cycle 12V 200AH Battery (Connect in Parallel for 12V 400AH output) | SOL_BAT_200AH | 2 | ||
T-bolt 10mm Solar Jumper Cable + Lug - Black | SOL_CON_LUG_10-8 | 1 | ||
T-bolt 10mm Solar Jumper Cable + Lug - Red | SOL_CON_LUG_10-8 | 1 |
What your setup should look like and the components you will need
b.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY | ||
T-Bolt 12V 150W Poly Solar Panel (Connect in Parallel for 12V 900W output using MC4-T) | SOLARPANEL-150W | 6 | ||
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 5 | ||
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr – Black | SOLCABLE_ESC-1x6-5M | 1 | ||
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr – Red | SOLCAB_ESC-1x6-5M_R | 1 | ||
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 |
What your setup should look like and the components you will need
c.) If you are interested in OPTION 4, contact us and inform us that you are interested in OPTION 4 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 4 and the sum amount for this package.
OPTION 5: UPPER-LEVEL EXTRA Combo Kit
What this package can run for approximately 4 to 5 hours
Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 6 | 18 | 108 |
Energy-Saver 8W LED Bulbs | 12 | 8 | 96 |
Electric Stand Fan | 3 | 50 | 150 |
43" Energy-Efficient LED T.V | 1 | 70 | 70 |
T.V Decoder | 1 | 20 | 20 |
Energy-Efficient Upright Fridge (~180 Net Lts) | 1 | 135 | 135 |
Energy-Efficient Chest Freezer (~200 Net Lts) | 2 | 155 | 310 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
Fortuner Hybrid Inverter / Home UPS-24V/40A With LCD -1700VA | SOL_INV_1700VA | 1 |
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 |
Leoch AGM Deep Cycle 12V 150AH Battery (Connect in Series/Parallel for 24V 300AH output) | SOL_BAT_150AH | 4 |
T-bolt 10mm Solar Jumper Cable + Lug - Black | SOL_CON_LUG_10-8 | 2 |
T-bolt 10mm Solar Jumper Cable + Lug - Red | SOL_CON_LUG_10-8 | 2 |
What your setup should look like and the components you will need
b.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
T-Bolt 24V 300W Poly Solar Panel (Connect in Parallel for 24V 1200W output) | SOLARPANEL-300W | 4 |
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 3 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Black | SOLCABLE_ESC-1x6-5M | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Red | SOLCAB_ESC-1x6-5M_R | 1 |
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 |
What your setup should look like and the components you will need
c.) If you are interested in OPTION 5, contact us and inform us that you are interested in OPTION 5 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 5 and the sum amount for this package.
OPTION 6: UPPER-LEVEL AMPLIFIED Combo Kit
What this package can run for approximately 4 to 5 hours
Note: Assuming your loads at home have a similar Wattage rating as per below table
Estimated | Load | Estimated | Estimated |
Loads | Qty | Wattage Rating | Load per hour |
Energy-Saver 4FT LED Tube Lights | 10 | 18 | 180 |
Energy-Saver 8W LED Bulbs | 15 | 8 | 120 |
Electric Stand Fan | 4 | 50 | 200 |
50" Energy-Efficient LED T.V | 1 | 120 | 120 |
T.V Decoder | 1 | 20 | 20 |
TV Sound Bar | 1 | 60 | 60 |
Energy-Efficient Home Theatre System (~1000W RMS) | 1 | 145 | 145 |
Energy-Efficient Upright Fridge (~320 Net Lts) | 1 | 160 | 160 |
Energy-Efficient Chest Freezer (~200 Net Lts) | 1 | 155 | 155 |
Energy-Efficient Chest Freezer (~320 Net Lts) | 1 | 190 | 190 |
To run the above loads, the components you will need to purchase
a.) If you DO NOT intend to invest in solar panels at current and rely on Zesco Electricity-grid charging for your batteries:
PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
Fortuner Solar Inverter With MPPT C C 24V/40A - LCD - 2200VA | SOL_INV_2200VA_MPPT | 1 |
Blite Extension Socket 3w 5m | B-EXT-3W-5M | 1 |
Leoch AGM Deep Cycle 12V 200AH Battery (Connect in Series/Parallel for 24V 400AH output) | SOL_BAT_200AH | 4 |
T-bolt 10mm Solar Jumper Cable + Lug – Black | SOL_CON_LUG_10-8 | 2 |
T-bolt 10mm Solar Jumper Cable + Lug – Red | SOL_CON_LUG_10-8 | 2 |
What your setup should look like and the components you will need
a.) If you DO intend to invest in solar panels for charging your batteries, the additional components you will need to purchase are:
SOLAR UPGRADE ADD-ON PACK PRODUCT DESCRIPTION | PRODUCT SKU | QUANTITY |
T-Bolt 24V 300W Poly Solar Panel (Connect in Parallel for 24V 1500W output) | SOL_PANEL_300W | 6 |
T-Bolt Solar Connector - MC4-T - 6mm/Less - 2pc Set | SOL_CON_MC4_T_6MM/L | 4 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Black | SOLCABLE_ESC-1x6-5M | 1 |
T-bolt Solar Panel PV cable - ESC-1 x 6mm x 5mtr - Red | SOLCAB_ESC-1x6-5M_R | 1 |
T-bolt Solar Panel PV MC4 Connector Set - SECP-1 x 6mm | SOLCABLE_SECP-1x6 | 1 |

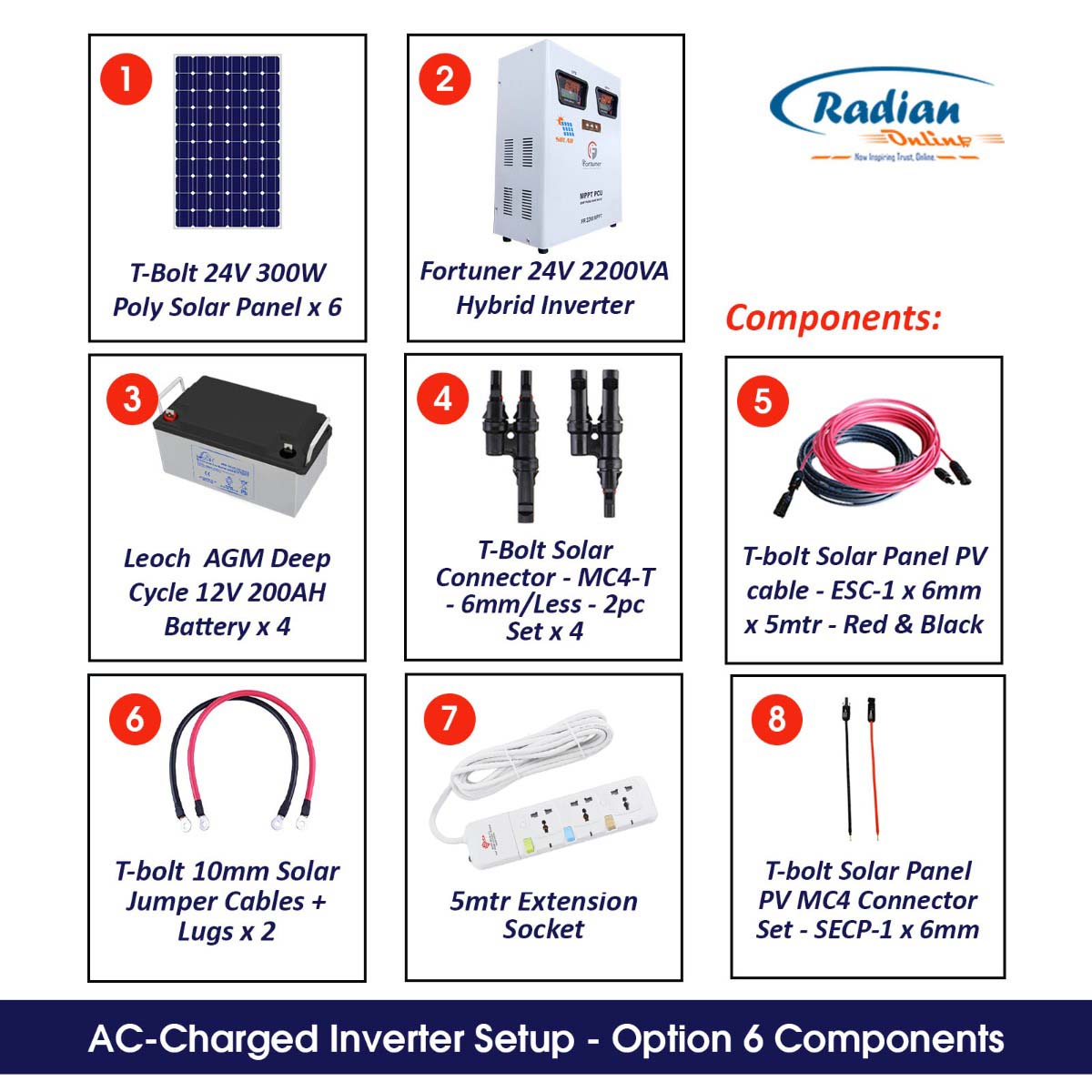

What your setup should look like and the components you will need
b.) If you are interested in OPTION 6, contact us and inform us that you are interested in OPTION 6 and clarify whether you require a Solar Upgrade Add-on Pack or not. We will assist you by checking availability of all the components required in OPTION 6 and the sum amount for this package.
We hope the above will be helpful to you. Should you have any other questions, feel free to get in touch with us.
